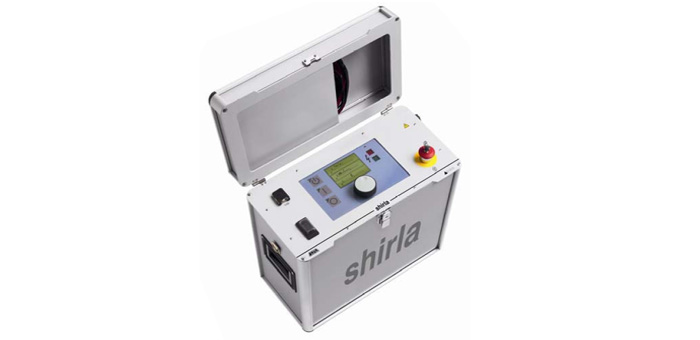

The new top device - shirla is used for cable- and cable sheath testing, fault prelocation as well as for sheath fault pin pointing according to the step voltage method.

The special measuring bridge is performing the measurements according to Murray and Glaser. With the integrated high voltage DC source, shirla allows prelocation of low resistive as well as high resistive cable faults. The measuring principle enables prelocation of faults especially at unshielded control- and lighting cables as well as cable sheath!

For cable fault pin pointing according to the step voltage method, a defined DC pulse pattern is applied and the step voltage can be picked up by using the KMF1 or UL receiver set.
