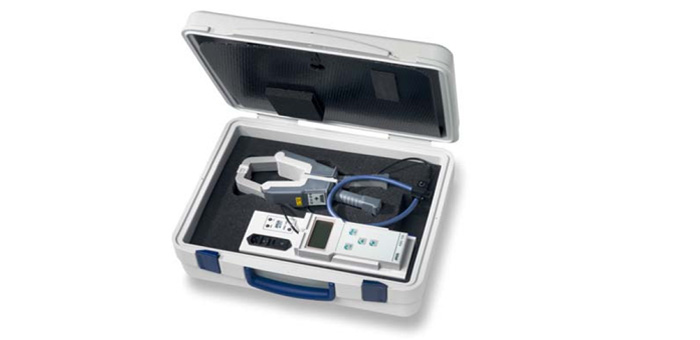

KSG 100 Cable ID System

The Cable Identification System KSG 100 is used for selection of single and multicore cables from a cable bundle. The amplitude, time and phase control (ATP) discriminator provides the user with the utmost security of cable identification.

The KSG 100 offers special advantages like fully automatic gain control, user-friendly menu guidance, voltage proof transmitter output and small dimensions.

Features:

Cable identification of single and multicore cables.

Reliable signal acquisition via digital 3-parameter analysis, ATP

Cable identification even in live LV cables via the mains proof direct connection

Identification of pulse direction, even with higherloop resistance

Inductive pulse injection via current transformer clamp into live cables

High pulse current up to 180 A

Small, flexible receiver with integrated graphics display

No battery necessary coupler using a Rogowski coil for large cable Diameter
