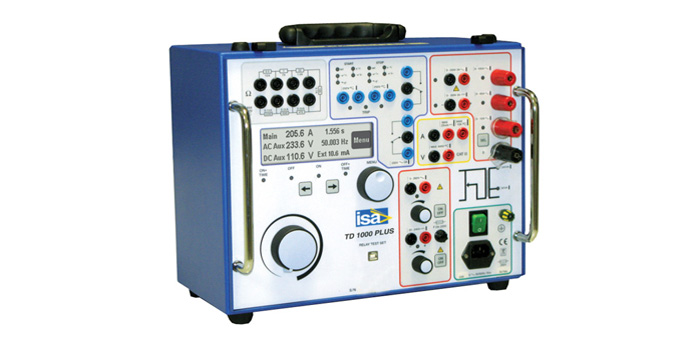

T1000 Plus - Secondary Injection Relay Test Set

Click on Image to Enlarge

The instrument contains 3 separate generators:
Main generator, that generates either AC
current, AC voltage; DC voltage;
Aux. AC voltage generator, that generates
an independent, phase shiftable AC voltage;
Aux. DC voltage generator, that generates the DC voltage that powers the relay under test.

click for enlargement

All outputs are adjustable and metered at the same time on the large, graphic LCD display.
With the multi-purpose knob and the LCD display it is possible to enter the MENU mode, that allows to set many functions, that make T 1000 PLUS a very powerful testing device, with manual and semi-automatic testing capabilities, and with the possibility to transfer test results to a PC via USB interface. These results can be recorded, displayed and analysed by the powerful TDMS software, that operates with all WINDOWS versions
Designed for testing relays and transducers
Microprocessor controlled
With phase angle shifter
Frequency generator
Test results and settings are saved into local memory
High power outputs
Oscilloscope function for current and voltage
Large graphical display
Compact and lightweight
Possibility to synchronize several T 1000 PLUS test sets
USB interface
2 auxiliary contacts for the test of autoreclosers
