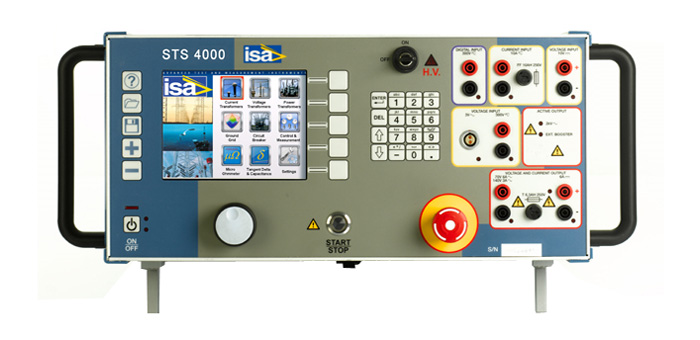

STS4000 - MULTIFUNCTION SUBSTATION MAINTENANCE & COMMISSIONING TEST SYSTEMS FOR CURRENT, VOLTAGE AND POWER TRANSFORMERS

Click on Image to Enlarge

This primary current injection testing system is designed to perform primary tests requested in substations commissioning. It allows to perform accurate tests on CTs, VTs, PTs and ground grid.

click for enlargement

Features:
Fully automatic
Primary injection testing capabilities: up to 5000 A / 7000 A, with the
optional module BUX 5000
Variable output frequency: 15 - 500 Hz
Power dissipation factor test with the optional module TD 5000 (voltage
 up to 12 kV)
2000 v AC high-pot test
Local control by large color display
PADS - Power Apparatus Diagnostic Software for automatic testing,
assessment and report
IEC 61850-9-2 communication protocol
Patented technology for Capacitance and Tan Delta measurement
USB interface and Ethernet interface for PC connection.
Compact and lightweight.
