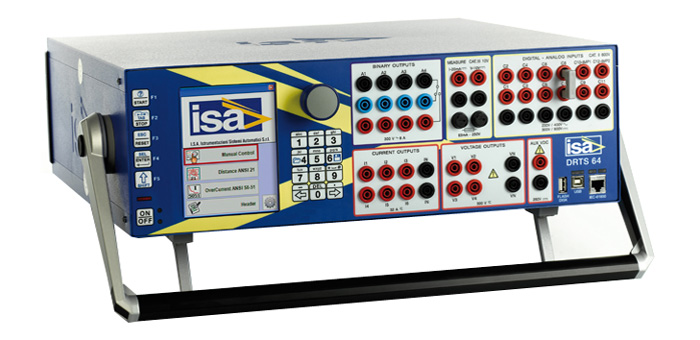

DRTS64 - The new generation of test equipment for Protective Relays, Energy meters, Transducers and Power Quality meters

Click on Image to Enlarge

This advanced secondary injection relay test system and power system simulator is designed to satisfy all the needs related to commissioning and maintaining substations and to testing protection relays, energy meters, transducers and power quality meters.

click for enlargement

Manual control with color display.
Simultaneously available: 6 Current and 4 Voltage plus 1 battery simulator outputs
High current outputs : 6 x 32 A, 3 x 64 A,1 x 128 A
High power outputs: 6 x 430 VA, 3 x 860 VA, 1 x 1000 VA
Voltage outputs: 6 x 300V at 100 VA
High accuracy outputs: better than 0.05%
IEC61850 protocol interface
USB, Ethernet and Pen Drive interface
End to end test with GPS or IRIG-B
Advanced testing and data management software TDMS
Complete library of relays from the major Manufacturers
Highest quality, safety and reliability
