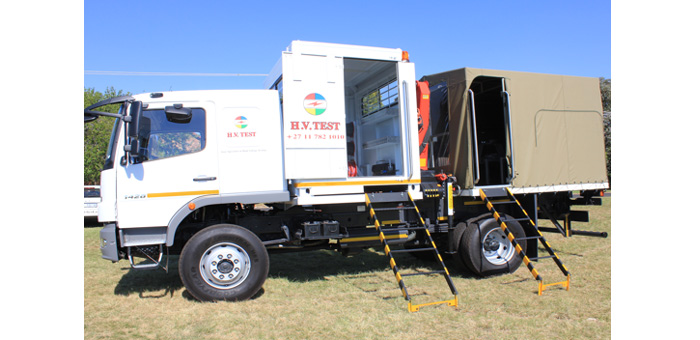

32kV Cable Fault Location Van

This 32kV Custom Van option combines the high Joules and quick thump rate of the very popular SSG range of 1100Joules to 3000Joules with a 32kV HV Filter all housed in a convenient 19 Rack design mounted in a Van of your choosing (it obviously needs to be big enough to house all the equipment. The addition of the 32kV HV Filter allows for the SIM/ARC reflection method. The 32kV output voltage means this unit is ideal for LV and MV cables up to 33kV AC.

The mobile design of this unit means the user can conveniently drive the vehicle to where ever it is needed. You supply the vehicle, we will mount the equipment and transform your Van into a cable fault finding system. Because of the additional space available inside the Van, it allows for an inverter and batteries or generator to be mounted next to the surge generator. The additional space also allows for the storage of other items for instance: VLF Cable Pressure Tester, Listening Set, Route Trace , Measuring wheel, additional HV lead or whatever else is needed.
Commercial Offer:
SSG1500 + Housing 32kV Surge Generator SSG1500 incl. Housing
IRG2000 + SK1D High Resistance TDR Scope BAUR IRG 2000 and SKID
SA32 Secondary Impulse Method BAUR SA32
Listening set Ground Amplifier BAUR UL 30 and Microphone BM 30 and case
Installation HV Test Installation
Supply System 220V Mains Supply System 5000Watt and 4x100Ah Batteries
