TD90 MC - Tan Delta Testing

Click on Image to Enlarge

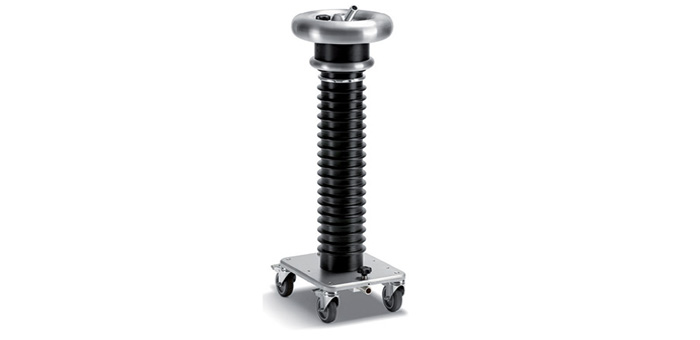

The TD90-MC tan delta testing system is a portable cable diagnostics system for confirming the dielectric condition of medium voltage cables. The battery powered, weight optimized device - only 16 kg - is perfectly suitable for mobile use.

The HVA90 Insulation Tester and HVA94 Cable Tester must be used with the TD90 tan delta testing system, usable over a range between 1 to 90 kV peak. The dissipation factor measurement is performed with an accuracy of ± 10exp-4 for loads in the range of 500 pF to 10 μF.

click for enlargement

Wireless data transmission via Bluetooth™
Bluetooth™ Dongle included
PC-software (TD Control Centre) for display, analysis and reporting
Easy to use and multilingual
Real time display of output voltage and current
Tan delta graph to display tan δ against voltage
Automatic generation of ready-to-print reports
Battery capacity up to 10 hours
Energy saving sleep-mode with auto-wakeup function
Cable set for connection to a HVA90 included & Earth Cable
Transport case for the TD90 system and accessories
