TD30 - Tan Delta Test System

Click on Image to Enlarge

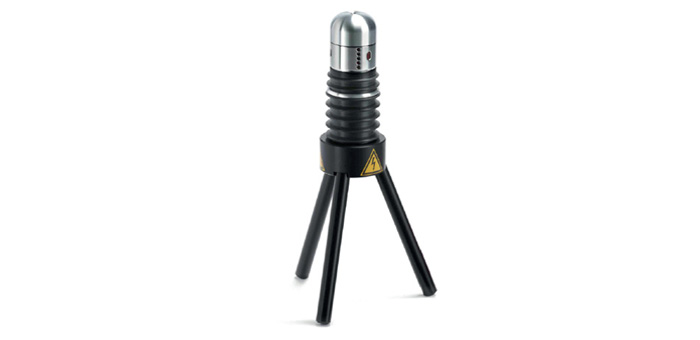

The TD30 tan delta test system is a portable cable diagnostics system for confirming the dielectric condition of medium voltage cables. The battery powered, weight optimized device - only 3 kg - is perfectly suitable for mobile use.

The HVA34 must be used with TD30 tan delta test system, usable over a range between 1 to 34 kV peak. The dissipation factor measurement is performed with an accuracy of ± 10exp-4 for loads in the range of 500 pF to 10 μF.

click for enlargement

Wireless data transmission via Bluetooth™
Bluetooth™ Dongle included
PC-software (TD Control Centre) for display, analysis and reporting
Easy to use and multilingual
Real time display of output voltage and current
Tan delta graph to display tan δ against voltage
Automatic generation of ready-to-print reports
Battery capacity up to 10 hours
Energy saving sleep-mode with auto-wakeup function
Cable set for connection to a HVA34 included & Earth Cable
Transport case for the TD30 system and accessories
