PD30E - Measurement Of Partial Discharges

Click on Image to Enlarge

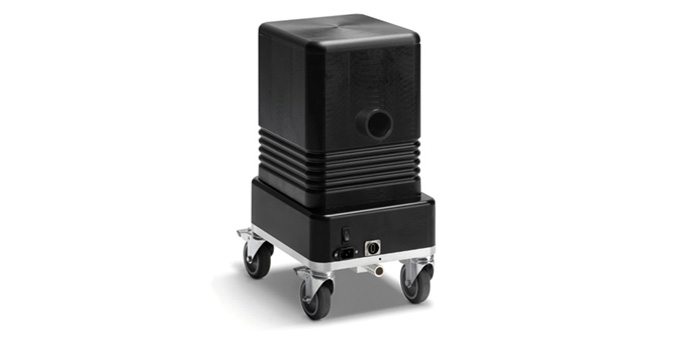

By measurement of partial discharges with the cable diagnostics systems PD30E, the dielectric condition of a medium voltage cable can be evaluated.

The total weight for coupling capacitor and calibrator is 17 kg. Thus the system is perfectly suitable for mobile use. For measurement of partial discharges a sinusoidal 0.1 Hz VLF voltage is employed, adjustable over a range of up to 34 kV peak.

click for enlargement

Compact, lightweight and portable solutions - 29kg
b2 Suite® software
Reporting by a mouse click – simple or comprehensive.
Measurement of the intensity of partial discharges versus time
Localization of faults by TDR (Time Domain Reflectometry)
Display of faults in the partial discharges mapping
Phase related depiction
