HVA30-7 High Voltage Tester

Click on Image to Enlarge

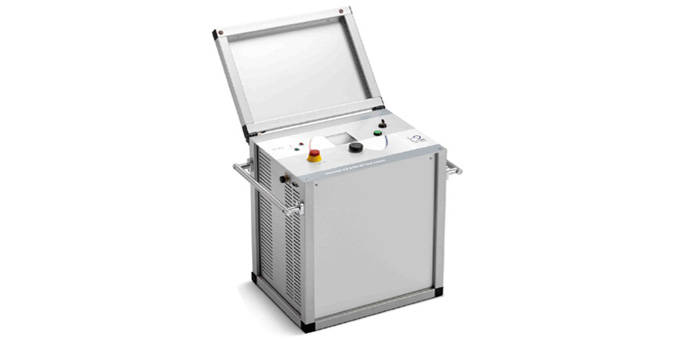

The HVA30-7 high voltage tester by b2hv is a portable 0.1 Hz VLF cable test system for the testing of medium voltage cables. It is the HVA series member for very high output current of up to 120 mA!

At only 57 kg this compact high voltage tester is truly quite remarkable and as such is ideal for mobile use. The powerful output is capable of driving capacitive loads of up to 15 μF.

click for enlargement

Predefined standard-compliant cable test sequences
Symmetrical sine wave at high voltage
RMS measurement of output voltage and current
Measurement of capacitive and resistive load
Automatic load dependent frequency selection (0.01 Hz 0.1 Hz)
Display of current test time
Integrated real-time scope function
Self-explanatory, multilingual software
Automatic measurement reporting
Report storage via USB or RS232
PC software (b2 ControlCenter) for data analysis and storage
Flashover detection and ultra fast switch off
Flashover voltage measurement
Time optimized burning mode
