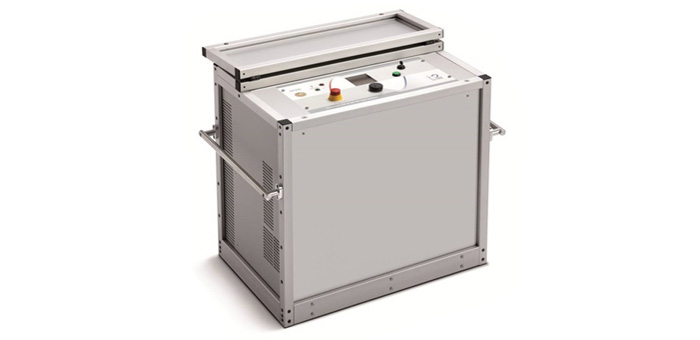

HVA120 - Insulation Tester

Click on Image to Enlarge

The HVA120 insulation tester is a powerfull 0.1 Hz VLF cable test system for testing of medium voltage cables, 0 120 kV peak, 0 85 kV rms.

The HVA120 offers various operating modes, Cable testing, cable sheath / jacket testing, sheath fault location, cable fault conditioning (burning), vacuum bottle test.

click for enlargement

Predefined standard-compliant cable test sequences
Symmetrical sine wave at high voltage
RMS measurement of output voltage and current
Measurement of capacitive and resistive load
Automatic load dependent frequency selection (0.01 Hz 0.1 Hz)
Display of current test time
Integrated real-time scope function
Self-explanatory, multilingual software
Automatic measurement reporting
Report storage via USB or RS232
PC software (b2 ControlCenter) for data analysis and storage
Flashover detection and ultra fast switch off
Flashover voltage measurement
Time optimized burning mode
