SINEAX SIRAX BT5100 - Measuring Transducer for AC Voltage

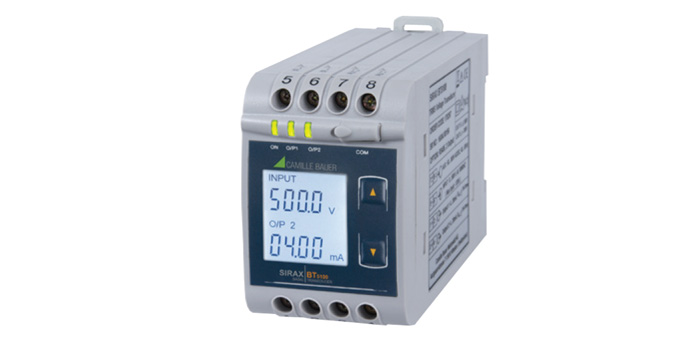

Click on Image to Enlarge

The SIRAX BT5100 is a top-hat rail mounted transducer and used to measure and convert AC voltage input into a proportional DC current or voltage output signal. Input Voltage and Output Voltage/Current is displayed on LCD and indicated by LEDís.

One-phase connection (Voltage)
2 configurable analog outputs linear or kinked in a range from
0/4...20 mA, 0/2...10 V
Quick on-site programming using push buttons or via CB-Configurator software
Simple on-site device operation
Clear and well readable representation of measured data via LCD display
Flexible communication and remote readout via integrated Modbus RTU interface
DIN rail for top-hat rail mounting
The whole SIRAX BT5x00 Series:
Type BT5100 BT5200  BT5300 BT5400  BT5700
Measuring Quantity Voltage  Current Frequency Power U,I,f,P,Energy
Display LCD LCD LCD LCD LCD
Analoge outputs 2 2 2 2 2
RS485-Modbus  yes yes yes yes yes
Accuracy class  0,2 0,2 0,2 0,2 0,2
