Centrax CU5000 Datasheet

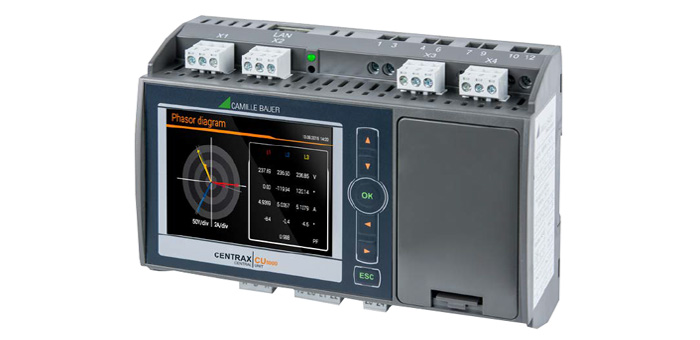

SINEAX CENTRAX CU5000 - Monitoring of Power Systems with Control Function

Click on Image to Enlarge

The CENTRAX CU5000 combines in one hat rail housing the functionality of a highly accurate measurement device for power applications with the possibilities of a freely programmable PLC. Thus, in many cases, there is no need for a separate PLC, a control system, a remote display or an additional data collector.
The measurement part of the CU5000 determines in high quality more than 1500 state, energy consumption and power quality information. The control application (based on CODESYS) can then process these data logically, use them in control algorithms or respond to power generation or consumers in accordance with the application.

Basic functionality:
Direct measurement up to 690V, CATIII
Condition monitoring: class 0.1 (U/I), class 0.2 (P/Q/S)
Energy consumption analysis, class 0.5S (meters, load profiles, trend analysis)
Harmonic analysis acc. IEC 61000-4-7
System imbalance monitoring
Universal process I/O
Graphical measurement displays (with option TFT display)
Ethernet interface (Modbus/TCP)
- Device parameterization via WEB browser
- Firmware update
- Measurement display
- Measurement acquisition via control system (Modbus/TCP server)
- Service and maintenance
