METRALINE DMM15 Datasheet

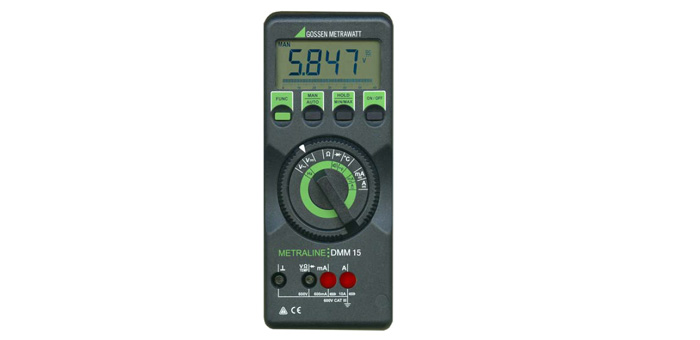

METRALINE DMM15 - TRMS Digital Multimeter, Analog BarGraph and Temperature

Click on Image to Enlarge

Multimeters of the economy series METRALINE are auto-range devices for universal use in all areas of electro-technics. They provide the user with the time-tested safety and reliability from Gossen Metrawatt at a convincing price performance ratio.
The METRALINE DMM15 provides users with all the measuring functions of a highly diverse multimeter: convincing technology with all voltage, resistance, current and temperature measuring ranges, and additional measuring functions and automatic functions.

Resolution: 6000 digits (3 6/7 place) and analog bar graph
TRMS measuremnts VAC and IAC
Basic accuracy: 0.5% VDC
Patented automatic blocking sockets (ABS)
Voltage: VDC 100μ to 600 V and VAC 100μ to 600 V
Current: IDC 10μ to 10 A (16 A 30 sec.) and IAC 10μ to 10 A (16 A 30 sec.)
Resistance: 100 mOhm to 40 MOhm
Temperature: -200.0 to +400.0 C, type K thermocouple
Frequency measurement: 0.1 Hz to 1 kHz
Continuity and diode testing
Min-Max measured value storage and DATA hold
DAkkS calibration certificate - optional
Measuring category: 600 V CAT III
