Metrahit ULTRA Datasheet

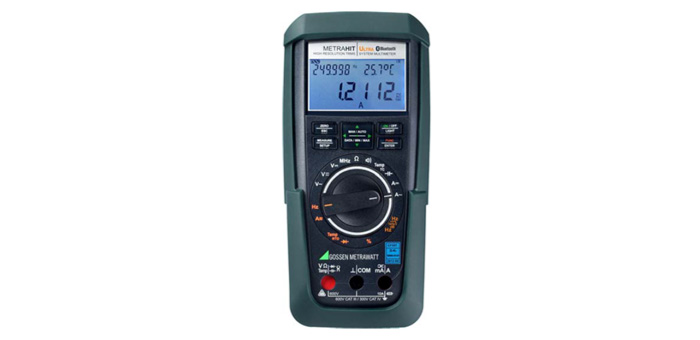

METRAHIT ULTRA - Precision TRMS Multimeter with Remote Control via Bluetooth

Click on Image to Enlarge

Precision multimeter, optionally with integrated Bluetooth, temperature measuring instrument and data logger for demanding, universal applications in the lab and for service calls

click for enlargement

Triple display with a resolution of 310,000 digits
Intrinsic error: (0.02% rdg. + 20 digits)
Measuring functions:
1 V to 600 VDC and 10 V to 600 VAC/AC+DC TRMS (bandwidth: 15 Hz to 100kHz)
1nA to 10ADC and 10nA to 10 AAC/AC+DC TRMS (bandwidth: 15 Hz to 10 kHz)
Resistance, frequency, capacitance and temperature measurement
1 mΩ to 30 MΩ, 0.001 Hz to 1 MHz, 1 pF to 3 mF, C/F, Pt100, Pt1000,
type K thermocouple: -270 to +1372 C
Automatic range selection and battery cutoff
Min-Max measured value storage
Integrated 2 MByte measurement data memory for approx. 300,000
measured values, sampling rate: 100 ms to 9 hrs.
IR data interface
CAT IV @ 300 V or CAT III @ 600 V per IEC 61010-1
DAkkS calibration certificate as standard feature
