METRAHIT ISO - TRMS Multimeter with Insulation Measurement for Service Technicians, 30,000 Digits

Click on Image to Enlarge

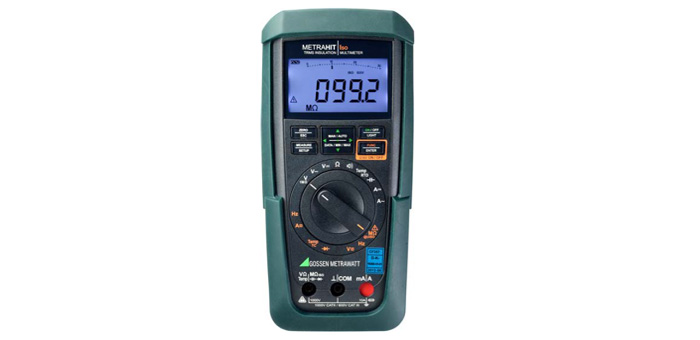

The METRAHIT ISO multimeter is a rugged portable measuring instrument for use in the field.
It is suitable for servicing household appliance, machines (e.g. forklifts) and systems (e.g. photovoltaic). The instrument can be used in the field and is equipped with an internal, mains-independent power supply.

Insulation resistance measurement up to 3.1 GΩ with interference voltage
detection - test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Multimeter with diverse functions (V, Ω, F, Hz)
TRMS measurements: TRMS AC / AC+DC for current / voltage up to 10 kHz
Activatable low-pass filter, 1 kHz / -3 dB in the V AC range
Direct current measurement, 100 nA to 10 A
Current measurement with current sensor clamps - CLIP A transformation
ratio of 1 mV:1 mA to 1 mV:1 A can be selected and is taken into
consideration at the display.
Precision temperature indicator, C or F, for Pt100 / Pt1000 sensors and
type K thermocouples
Diode measurement (IK = 1 mA, Uflow to 5.1 V) and continuity testing
Display: 4 place, 30,000 digits, illumination can be activated
Acoustic signals for: continuity testing, dangerous contact voltages,
exceeded overload limits
Min-Max value storage
Data memory and internal clock, power pack adapter socket
IP 54 Housing protection, dust and splash protected, protective cover
Bidirectional infrared interface for exchanging data with a PC
Windows software available as accessory for processing and graphic display
of measured values via RS 232 interface
