METRACAL MC Datasheet

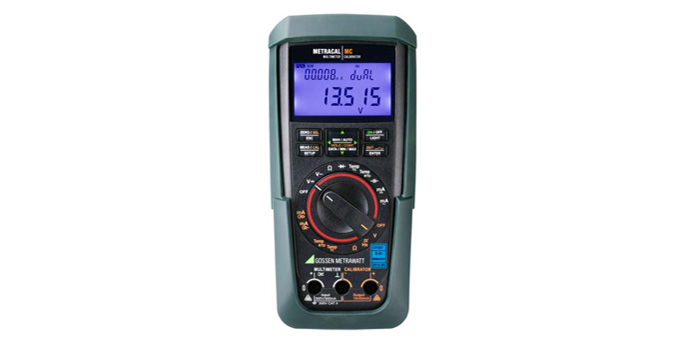

METRACAL MC - Universal Calibrator, Simulator and Multimeter

Click on Image to Enlarge

The new, compact multifunction process calibrator convinces by ruggedness, simple handling, highest functionality, precision and PC system ability.
The METRACAL MC rationalizes measuring, calibrating and revision work in the chemical process, laboratory and development, in the production area of electronic measurand transducers and at comparison and calibration of metrological components.

Universal calibrator, simulator and multimeter mA / mV... V / C (Pt100/1000,
Ni100/1000, thermocouples: J, L, T, U, K, E, S, R, B, N) / 30 ... 2000 Ω
Dual mode V simultaneous calibration and measurement (U / I)
Measuring and encoding in absolute terms and as percentage (scaled)
Memory for measurement results: 16 MBit
Frequency and pulse run generators: 1 Hz to 2 kHz
Ramp and staircase functions
METRAwin 90-2 interface and calibration software
Transmitter simulator (sink: 0... 24 mA)
DAkkS calibration certificate included
Rugged, EMC compliant design
Precision multimeter (V, A, Ω, F, Hz, C / F) 30,000 (60,000) digits and
triple display
TRMS AC measurement to 20 kHz
