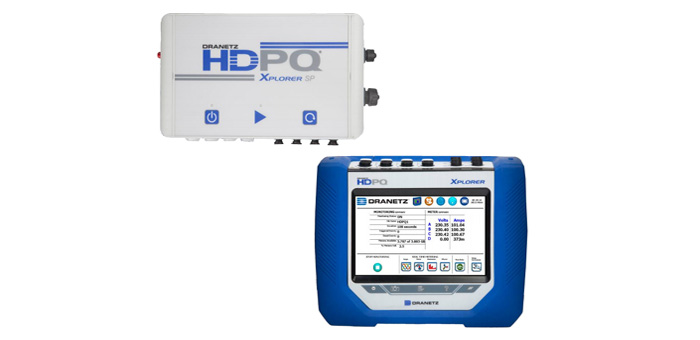

HDPQ Xplorer Portable & HDPQ Xplorer SP Power Quality Analyzers

Click on Image to Enlarge

The HDPQ® Xplorer (portable) and HDPQ Xplorer SP (IP65) power quality analyzers represent the top of the line in the HDPQ family of products and offers you simply the best PQ monitoring. The HDPQ Xplorer family includes all of the features of the HDPQ Visa and Guide power quality instruments, but also adds high speed transient capture capabilities, so you’ll never miss an event!

The HDPQ Xplorer and HDPQ Xplorer SP are the exact same instrument, but are in different enclosures. The HDPQ Xplorer is a true hand-held portable instrument with a built in 7″, tablet-like touch LCD display. The HDPQ Xplorer SP has the same measurement and communications capabilities, but is housed in an IP65 enclosure without an LCD display, and can also be powered by the circuit being measured. The IP65 enclosure of the HDPQ Xplorer SP greatly expands the applications of the HDPQ Xplorer into outdoor and harsh environments, along with other applications where an LCD display is undesirable.
The HDPQ Xplorer family of power quality instruments offers you the best in class monitoring capabilities available. It measures to all current industry standards, including IEC 61000-4-30 Class A, IEC 61000-4-7, IEEE 1159, IEEE 519, IEEE 1459, and more. With its high speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, by using a range of standard and customizable operating modes. The unique measurement capabilities include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.
Applications:
Power Quality surveys and diagnostics
Power surveys
Motor testing & diagnosis
Fault recording
Transient recording
Alternative energy production – Solar, Wind – Panel strings, batteries,
inverters, grid interconnect, forward & reverse energy
Inrush testing for transformers, motors, etc.
Energy management & load surveys
Outdoor and harsh monitoring environments including those that require
an IP65 enclosure (HDPQ Xplorer SP only)
Data logging
Harmonic analysis
Advanced load distortion and imbalance
Compliance testing
Flicker testing
Capacitor testing
