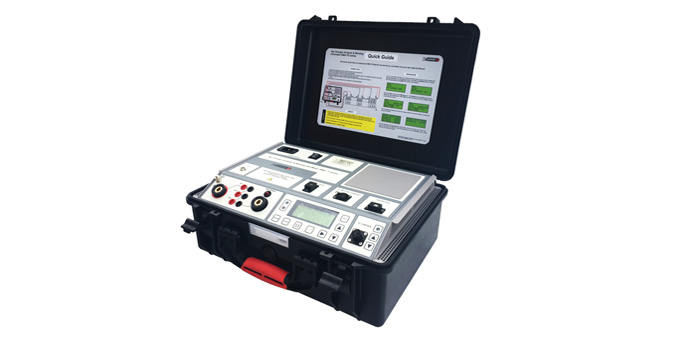

Tap Changer Analyzer & Winding Ohmmeter - RMO TD Series

The controer Analyzer & Winding Ohmmeter of the RMO-TD series is designed for winding resistance measurement of inductive objects, and for a tap changer analysis. The RMO-TD series is based on the state of the art technology, using the most advanced switch mode technology available today. The RMO-TD series is accurate (0,1_%), powerful (up to 60 A) and lightweight. It generates a true DC ripple free current with automatically regulated measure-ment and discharging circuit.

RMO-TD series can perform a simple, quick and reliable transformer on-load tap changer condition assessment. This series enables measurements of a winding resistance in every tap position, current ripple values (percentage of a current drop during a tap change) and transition times during the tap changes. Problems with a connection, contacts, and selector/diverter switch operation (tap change with interruption) can be detected with these measurements.
Features:
On-load tap changer dynamic resistance measurement
Three resistance measurement channels
One temperature measurement channel
Automatic resistance measurement
Heat Run test
Rapid automatic demagnetization
Tap changer motor current monitoring channel
Automatic discharge circuit
Built-in tap changer control unit
Three models: RMO25TD, RMO40TD, RMO60TD
