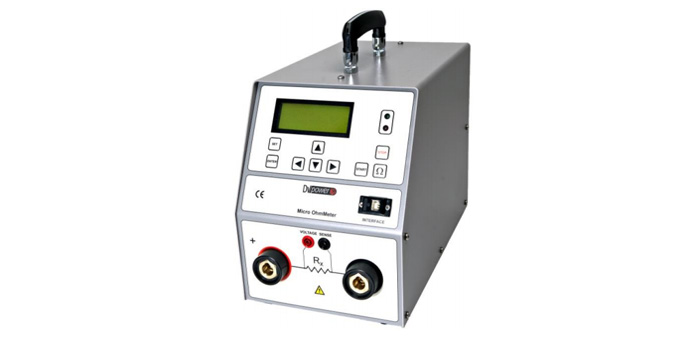

Micro Ohmmeters – RMO A series

RMO-A series of Micro Ohmmeters (hereafter referred to as “RMO-A”) is based on a state of the art technology, using the most advanced switch mode technique available today.RMO-A generates a true DC ripple-free current with automatically regulated test ramps. During a test the RMO-A ramps with increasing current before measuring and decreasing current after the measurement. This eliminates magnetic transients.

The RMO-A instrument can store internally up to 500 measurements. All measurements are time and date stamped. Using the DV-Win software a test can be performed from a user’s PC, and the results can be obtained directly on the PC. Communication between the RMO-A and a PC is through an USB (as standard) or an RS232 cable (as an option). Bluetooth communication interface is also available as an option. Using the DV-Win the result can be arranged as an Excel spread-sheet which can be later shown as a diagram and printed for a report.
The set is equipped with a thermal and an overcurrent protection. The RMO-A has a very high ability to cancel electrostatic and electro-magnetic interference in HV electric fields. It is achieved by very efficient filtration. The filtration is made utilizing a proprietary hardware and software.
RMO A series contain 6 models
RMO100A – test current from 5 to 100 A, weighs only 7 kg / 15.4 lbs
RMO200A – test current from 5 to 200 A, weighs only 7 kg / 15.4 lbs
RMO300A – test current from 5 to 300 A, weighs only 7,5 kg / 16.5 lbs
RMO400A – test current from 5 to 400 A, weighs only 7,5 kg / 16.5 lbs
RMO500A – test current from 5 to 500 A, weighs only 8 kg / 17.5 lbs
RMO600A – test current from 5 to 600 A, weighs only 8 kg / 17.5 lbs
