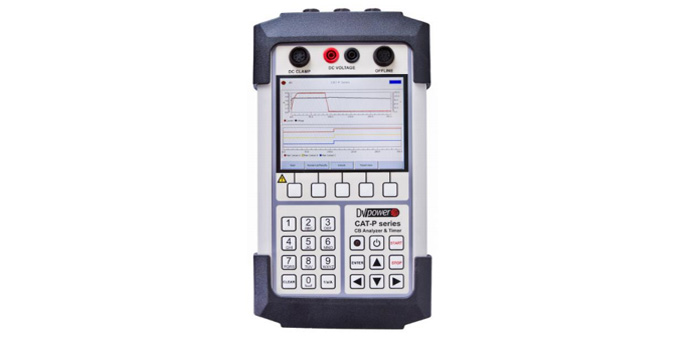

Circuit Breaker Analyzer & Timer CAT-P

Handheld Circuit Breaker Analyzer & Timer CATP is a digital instrument for circuit breakers condition assessment. CAT-P records timing graphs of main arcing contacts, DC substation battery voltage, Trip and Close coil currents. Main contacts operating time in on-line mode is calculated based on AC secondary CTís currents. The timing channels record closing and opening of the main contacts.

Features:
Portable (1,4 kg / 3.1 lbs)
Internal battery power supply
Online measurement (First trip test)
Offline measurement
DC voltage and DC current measurement
Touch screen color display 145 mm (5.7 in)
On-site analysis of test results (overlay up to 4 records in graphical form)
Test results analysis and comparison with results obtained from other CAT
instruments using DV-Win software
