SSG 500 Surge Voltage Generator

Click on Image to Enlarge

The Surge Voltage Generators are used for pre-locating as well as for pin-pointing of high and low resistance faults in power cables. The stored energy of the high voltage capacitors is fed at intervals in to the faulty cable. This causes an acoustic noise at the fault position which can be detected with a ground microphone and an audio frequency receiver.

click for enlargement

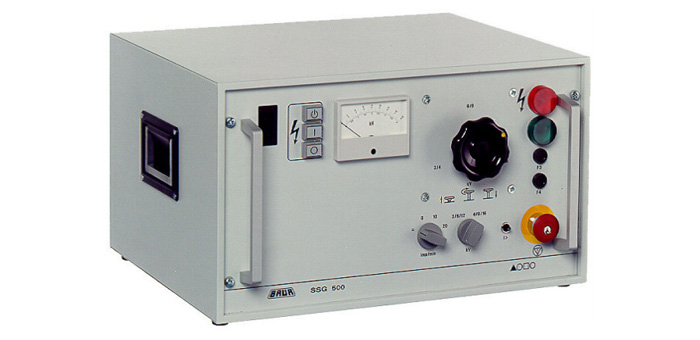

The SSG 500 is a portable Surge Voltage Generator in a sturdy 19" steel housing. The output voltage is selectable in 3 ranges, 4 / 8 / 16 kV. Maximum safety is guaranteed via safety interlock circuit, automatic discharging device, enclosed housing and separation between operation and protection ground. The high voltage is measured in 3 ranges on a kV-meter
Easy to operate
Solenoid operated surge switch
Automatic discharge device
Max. surge energy 512 Joule
Output voltage: 3, 6, 12 kV and 4, 8, 16 kV
2 selectable impulse frequencies
DC operation for cable testing and cable fault location
Lightweight, easily portable
Safety control circuit according to VDE 0104
