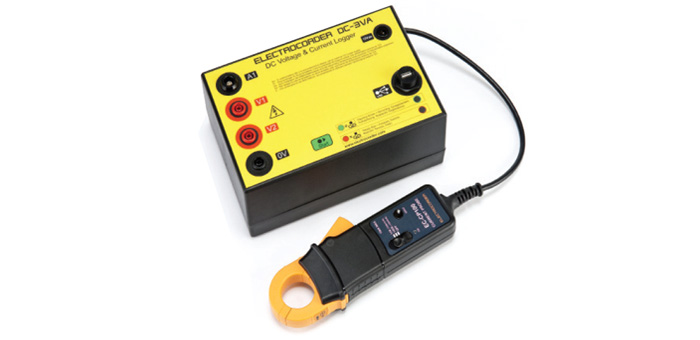

DC-3VA - DC Voltage & Current Logger

Click on Image to Enlarge

The DC-3VA is specifically designed to accurately monitor one or two DC voltage channels, 1V to 300Vdc and one DC current channel.

Two models are available. The DC-3VA-11 has a range of 10Adc to 100Adc, DC-3VA-33 has a range of 30Adc to 300Adc, DC-3VA-HT has a range of 100Adc to 1kAdc.

click for enlargement

Monitor charging circuits, PV (photovoltaic) cell, DC motor and many
other application.
Records voltage up to 300Vdc & loads up to 1kAdc, model dependent
Data stored in non-volatile memory
Memory capacity of 32,000 (True RMS) values per channel (10bit), up
to 300 days continuous recording
Selectable averaging period from 1 second to 60 minutes
Accuracy: Voltage 1Vdc to 300Vdc <1% of range Current 10Adc/100Adc
Model <1% accuracy 30Adc/300Adc Model <1% accuracy 100Adc/1kAdc
Model <1% accuracy
Kit includes data logger, fused voltage leads, DC current probes, USB lead,
12Vdc PSU, Electrosoft software and a carry case.
